OAuth 2.0 / OpenID Connect in Lightwave
Introduction
Lightwave OIDC serves two main purposes.
1. Security Token Service (STS) in the sense that it issues security tokens in the form of JWT tokens (similar to WS-TRUST which issues SAML 2.0 Assertions)
2. single signon (SSO) / single logout (SLO) service for web-based applications (similar to SAML 2.0 Authentication Request and Single Logout protocols aka websso)
Implementation (Open source)
https://github.com/vmware/lightwave/tree/dev/vmidentity/openidconnect
Roles
User (Resource Owner)
User agent (browser)
Client (aka Relying Party / RP) e.g: lightwaveui
Authz Server (aka OpenID Provider / OP)
Resource Server (server that wants to implement authz for its API's) e.g: admin server
JWT tokens
OAuth 2.0 defines an access_token and a refresh_token but does not specify their format. We are using JWT as the format.
OpenID Connect additionaly defines an id_token and specifies its format as a JWT.
Lightwave OIDC issues id_tokens, access_tokens, and refresh_tokens. All will be signed using the tenant's private key.
id_token
Represents the authentication of an end user at the Authz Server. The Client will validate this token and read its claims to sign in the end user.
example id_token JSON body:
{
"sub": "administrator@lw-testdom.com",
"iss": "https://photon-63mciz57.lw-testdom.com/openidconnect/LW-TESTDOM.COM",
"groups": [
"LW-TESTDOM.COM\\Users",
"LW-TESTDOM.COM\\Administrators",
"LW-TESTDOM.COM\\CAAdmins",
"LW-TESTDOM.COM\\Everyone"
],
"token_class": "id_token",
"token_type": "Bearer",
"given_name": "Administrator",
"aud": "administrator@lw-testdom.com",
"scope": "at_groups rs_admin_server openid offline_access id_groups",
"exp": 1501698283,
"iat": 1501694683,
"family_name": "LW-TESTDOM.COM",
"jti": "rbdevuzSlBfwgSvQJdgtviOeVUmidOHcDZw79iy6ouQ",
"tenant": "LW-TESTDOM.COM"
}
access_token
The Client will use this in its protected resource requests against the Resource Server.
The Resource Server, on receiving the access_token from the Client, will validate the token and make an API authz decision based on the user's group membership in the groups claim.
example access_token JSON body:
{
"sub": "administrator@lw-testdom.com",
"aud": [
"administrator@lw-testdom.com",
"rs_admin_server"
],
"scope": "at_groups rs_admin_server openid offline_access id_groups",
"iss": "https://photon-63mciz57.lw-testdom.com/openidconnect/LW-TESTDOM.COM",
"groups": [
"LW-TESTDOM.COM\\Users",
"LW-TESTDOM.COM\\Administrators",
"LW-TESTDOM.COM\\CAAdmins",
"LW-TESTDOM.COM\\Everyone"
],
"token_class": "access_token",
"token_type": "Bearer",
"exp": 1501698283,
"iat": 1501694683,
"jti": "0lXE9y17uMevd0gBaIhRZ1ZqoYb7P64EuY7Bh7qyPXY",
"tenant": "LW-TESTDOM.COM",
"admin_server_role": "Administrator"
}
refresh_token
The Client uses this token to get a new access_token (and id_token) when the original access_token expires (as reported by a Resource Server).
example refresh_token JSON body:
{
"sub": "administrator@lw-testdom.com",
"aud": "administrator@lw-testdom.com",
"scope": "at_groups rs_admin_server openid offline_access id_groups",
"iss": "https://photon-63mciz57.lw-testdom.com/openidconnect/LW-TESTDOM.COM",
"token_class": "refresh_token",
"token_type": "Bearer",
"exp": 1501723483,
"iat": 1501694683,
"jti": "tKtIlifxWfgt8YpDZ0mwq8uF2xYxANlDnucHIOn7IAI",
"tenant": "LW-TESTDOM.COM"
}
Supported Flows
Authz Code Flow

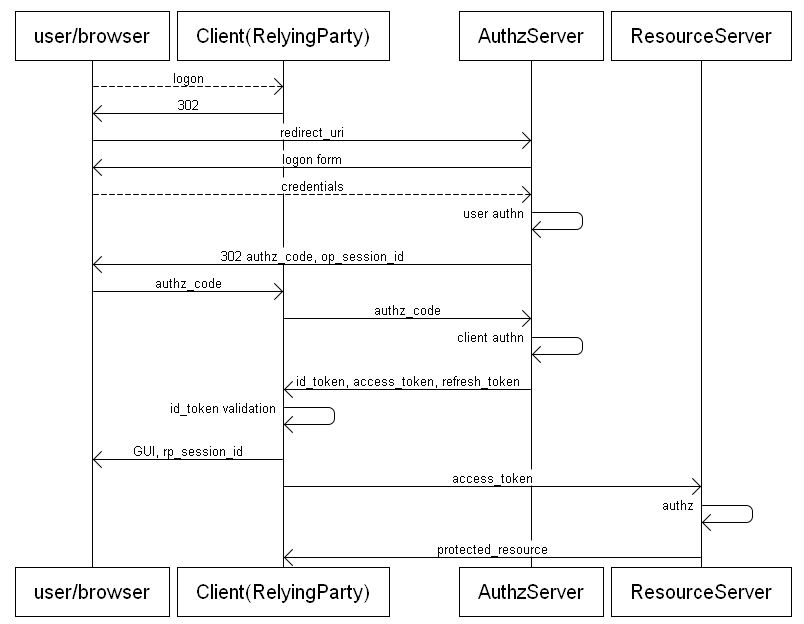

sequence diagram:
sample request/response:
Authn Request
GET /authorize?
response_type=code&
client_id=_client_id_xyz_&
redirect_uri=https://client.example.com/cb&
state=_state_xyz_&
nonce=_nonce_xyz_&
scope=openid offline_access HTTP/1.1
Host: server.example.com
Authn Response
HTTP/1.1 302 Found
Location: https://client.example.com/cb?
code=_authz_code_xyz_&
state=_state_xyz_
Token Request
POST /token HTTP/1.1
Host: server.example.com
Content-Type: application/x-www-form-urlencoded
grant_type=authorization_code&
code=_authz_code_xyz_&
redirect_uri=https://client.example.com/cb&
client_assertion_type=urn:ietf:params:oauth:client-assertion-type:jwt-bearer&
client_assertion=<private_key_jwt>
Token Response
HTTP/1.1 200 OK
Content-Type: application/json;charset=UTF-8
Cache-Control: no-store
Pragma: no-cache
{
"access_token":"<access_token>",
"token_type":"Bearer",
"expires_in":3600,
"id_token":"<id_token>",
"refresh_token":"_refresh_token_xyz_"
}
Implicit Flow

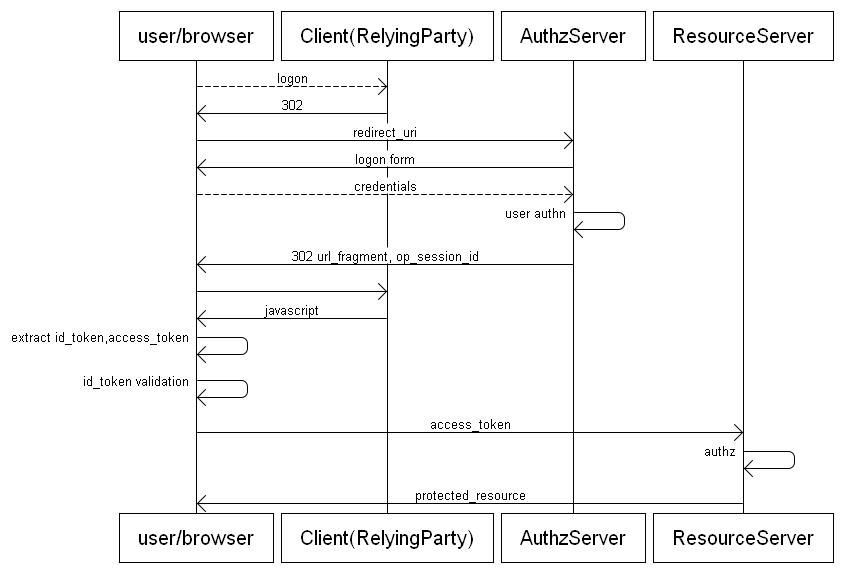

sequence diagram:
sample request/response:
Authn Request
GET /authorize?
response_type=id_token&
client_id=_client_id_xyz_&
redirect_uri=https://client.example.com/cb&
state=_state_xyz_&
nonce=_nonce_xyz_&
scope=openid HTTP/1.1
Host: server.example.com
Authn Response
HTTP/1.1 302 Found
Location: http://example.com/cb#
state=_state_xyz_&
id_token=<id_token>
Password Flow

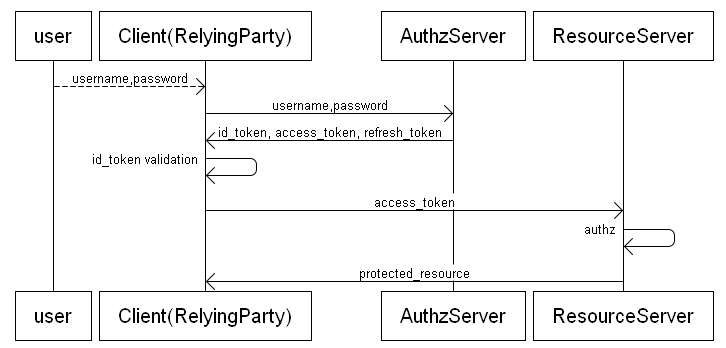

sequence diagram:
sample request/response:
Token Request
POST /token HTTP/1.1
Host: server.example.com
Authorization: Basic czZCaGRSa3F0MzpnWDFmQmF0M2JW
Content-Type: application/x-www-form-urlencoded
grant_type=password&
username=_username_xyz_&
password=_password_xyz_&
scope=openid offline_access
Token Response
HTTP/1.1 200 OK
Content-Type: application/json;charset=UTF-8
Cache-Control: no-store
Pragma: no-cache
{
"access_token":"<access_token>",
"token_type":"Bearer",
"expires_in":3600,
"id_token":"<id_token>",
"refresh_token":"_refresh_token_xyz_"
}
Refresh Token Flow

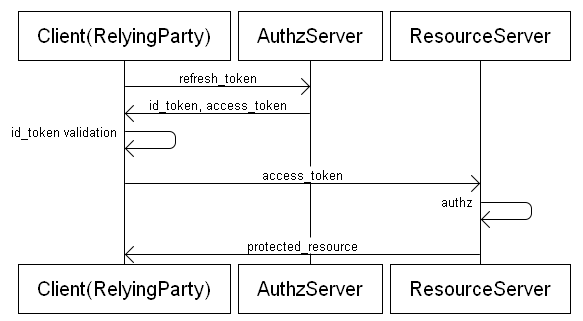

sequence diagram:
sample request/response:
Token Request
POST /token HTTP/1.1
Host: server.example.com
Authorization: Basic czZCaGRSa3F0MzpnWDFmQmF0M2JW
Content-Type: application/x-www-form-urlencoded
grant_type=refresh_token&
refresh_token=_refresh_token_xyz_&
client_id=_client_id_xyz_
Token Response
HTTP/1.1 200 OK
Content-Type: application/json;charset=UTF-8
Cache-Control: no-store
Pragma: no-cache
{
"access_token":"<access_token>",
"token_type":"Bearer",
"expires_in":3600,
"id_token":"<id_token>"
}
Metadata endpoint
Spec link: http://openid.net/specs/openid-connect-discovery-1_0.html
OIDC Metadata endpoint publishes a JSON format document that includes server metadata such as server endpoints and server supported capability configurations. Client can use these data to help construct requests used in OIDC workflows.
Metadata endpoint format:
https://[OIDC Server URL]/{tenant}/.well-known/openid-configuration
Request to the metadata endpoint should use HTTP verb: GET. A sample request is listed below:
GET [OIDC Server URL]/{tenant}/.well-known/openid-configuration HTTP/1.1
Host: example.com
A successful response will return HTTP status code 200 (OK), and a JSON object using the application/json content type. The details for claim definitions can be found in the spec above. A sample response is listed below:
HTTP/1.1 200 OK
Content-Type: application/json
{
"response_types_supported":[
"code",
"id_token",
"token id_token"
],
"jwks_uri":"https:\/\/photon-63mciz57.lw-testdom.com\/openidconnect\/jwks\/LW-TESTDOM.COM",
"end_session_endpoint":"https:\/\/photon-63mciz57.lw-testdom.com\/openidconnect\/logout\/LW-TESTDOM.COM",
"subject_types_supported":[
"public"
],
"id_token_signing_alg_values_supported":[
"RS256"
],
"issuer":"https:\/\/photon-63mciz57.lw-testdom.com\/openidconnect\/LW-TESTDOM.COM",
"authorization_endpoint":"https:\/\/photon-63mciz57.lw-testdom.com\/openidconnect\/oidc\/authorize\/LW-TESTDOM.COM",
"token_endpoint":"https:\/\/photon-63mciz57.lw-testdom.com\/openidconnect\/token\/LW-TESTDOM.COM"
}
An error response will return HTTP status code 404 (Not Found) or 500 (Internal Server Error).
JWKS endpoint
OIDC server also provides a JWK set endpoint to publish OIDC server public RSA keys in the format of JSON Web Key (JWK) set. The spec for JWK can be found in the link: https://tools.ietf.org/html/draft-ietf-jose-json-web-key-41.
Relying parties and resource servers need to retrieve this public key so they can verify token signature signed by the OIDC server.
JWK set endpoint format:
https://[OIDC Server URL]/jwks/{tenant}
Request to the JWK set endpoint should use HTTP verb: GET. A sample request is listed below:
GET [OIDC Server URL]/jwks HTTP/1.1
Host: example.com
A successful response will return HTTP status code 200 (OK), and a JSON object using the application/json content type. A sample response is listed below:
HTTP/1.1 200 OK
Content-Type: application/json
{
"keys":
[
{
"e": "AQAB",
"n": "......",
......
}
]
}
An error response will return HTTP status code 404 (Not Found) or 500 (Internal Server Error).
Holder Of Key tokens
Solution Users or Clients that have a backing Solution User can request HOK tokens. The token request will include a proof of possession of the private key in the form of a solution_user_assertion or client_assertion which are JWT's signed using the private key.
OIDC server will use the Solution User's registered certificate to validate the signature of the JWT.
The issued access_token will contain an "hotk" claim that is a JWK Set containing the Solution User's public key.
The Client will then send signed requests to Resource Servers that support HoK access_tokens.
The Resource Server will validate the signature of the request using the public key in the access_token's "hotk" claim.
Act As tokens
ActAs tokens are HOK tokens whose subject is a Person User. A token request that includes PersonUser and SolutionUser credentials at the same time will result in ActAs tokens.
There are many forms of Person User credentials, for example username/password or authorization code.
Solution User credentials will be in the form of solution_user_assertion or client_assertion which are both JWT's signed using the Solution User's private key.
The most common form of acquiring ActAs tokens is the Authorization Code Flow. The authorization code represents Person User credentials (the user who logged) and the token request is required to have a client_assertion which represents a registered OIDC client with a backing Solution User.
Login
When a user is redirected to the Authz Server, if the Authz Server does not receive a session cookie, it will serve a login form.
The user can then login using username/password (or RSA SecurID, Kerberos, Smart Card, if enabled).
Single Sign On
SSO is achieved by the use of cookies.
When a user logs in to the Authz Server (after being redirected to it by a Client), a session cookie is returned " oidc_session_id-<tenant>=<session_id>".
When the user attempts to login to another Client, the other Client will redirect the user to the same Authz Server, the browser will then include the Authz Server session cookie which will allow the Authz Server to login the same user without prompting for credentials.
Logout
Implemented according to OpenID Connect Session Management 1.0 - draft 23 Section 5. "RP-Initiated Logout"

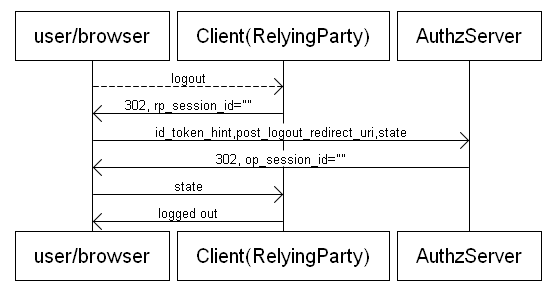

sequence diagram:
sample request/response:
Logout Request
GET /logout?
id_token_hint=<id_token>&
post_logout_redirect_uri=https://client.example.com/cb&
state=_state_xyz_
Host: server.example.com
Cookie:oidc_session_id-vsphere.local=<session_id>
Logout Response
HTTP/1.1 302 Found
Location: https://client.example.com/cb?
state=_state_xyz_
Set-Cookie:oidc_session_id-vsphere.local=""
Single Log Out
Implemented according to OpenID Connect HTTP-Based Logout 1.0 - draft 00
When Authz Server receives a logout request, it returns an html page with iframe tags whose source is the logout_uri of all the Clients the user has logged into.
The browser will make HTTP GET requests and include session cookies which will allow the Client to logout the user.
Implementation
Server State
The following classes keep track of server state using LinkedHashMaps (wrapped by oidc.server.SlidingWindowMap):
Request Processing
Every endpoint has a Controller which is the first point of processing:
MetadataController
JWKSController
AuthenticationController
TokenController
LogoutController
Metdata and jwks requests are simple GET requests and will be handled directly by their corresponding Controller whereas the rest will be handled by RequestProcessor's:
AuthenticationRequestProcessor
TokenRequestProcessor
LogoutRequestProcessor
These will encapsulate requests and responses:
AuthenticationRequest
AuthenticationResponse
AuthenticationSuccessResponse
AuthenticationErrorResponse
TokenRequest
TokenResponse
TokenSuccessResponse
TokenErrorResponse
LogoutRequest
LogoutResponse
LogoutSuccessResponse
LogoutErrorResponse
Code Organization
Code is organized into 5 components that build into separate jars
